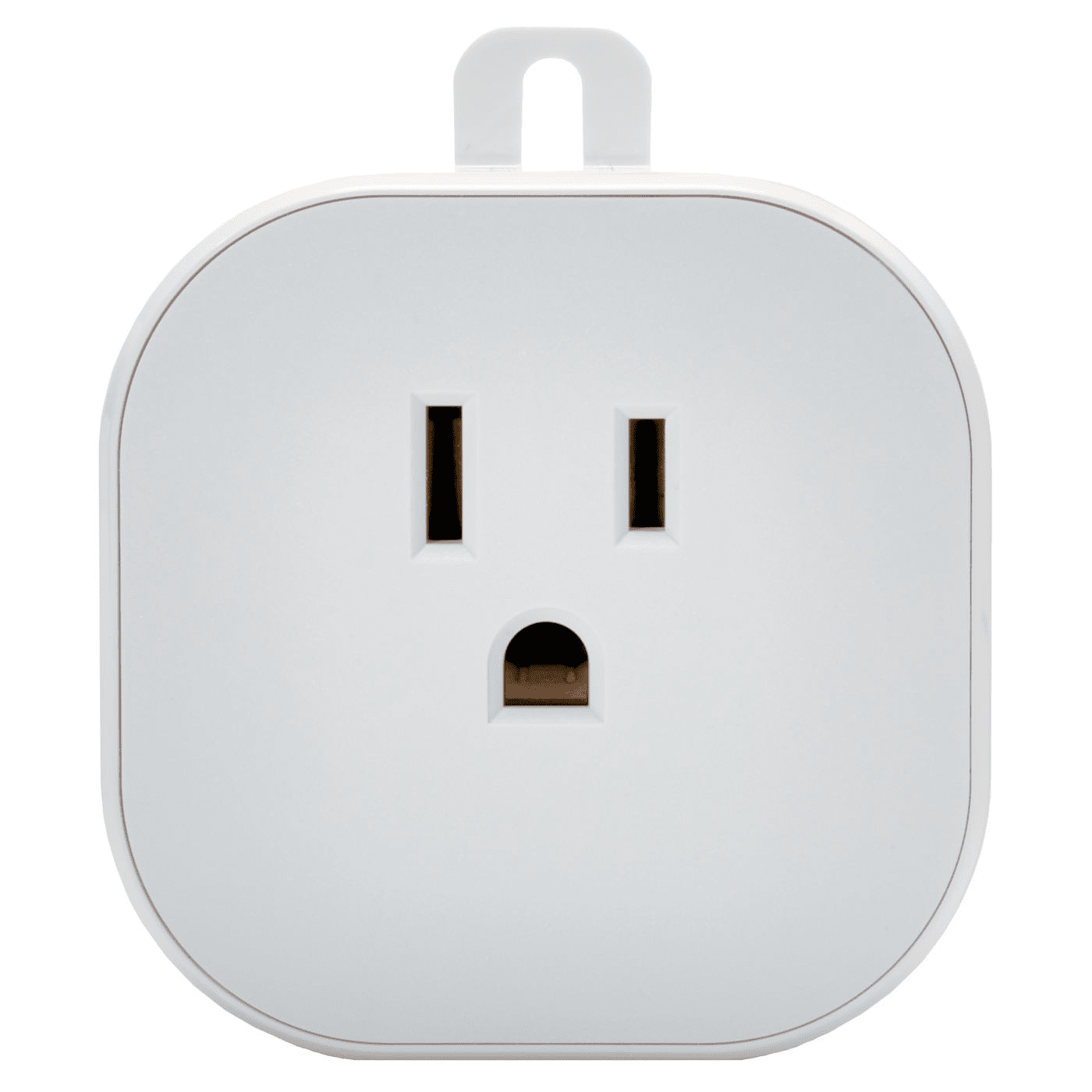

How to Program the IQ QZ2131-840 Smart Plug to Your Panel
Z-Wave devices are compatible with a variety of systems. Select your panel below for instructions specific to your system. If your system is not represented below, you can text a Support Representative at 469.513.8685 any time for programming instructions.
Qolsys IQ Panel 2 and Z-Wave Pairing Instructions:
1. Press or swipe down the clock display at the top for Settings Tray, then press Settings.
2. Press Advanced Settings, then enter the default installer code 1111.
3. Press Installation, then Devices.
4. Press Z-Wave Devices, Add Device, then Pair.
5. IQ Panel 2 enters Z-Wave learn mode. Next, connect the Smart Plug by plugging it into a powered outlet.
6. If successful, the IQ Panel 2 displays device settings. Press Name, then select the name.
8. Press Add, then Home to exit.
2GIG GC2 and Z-Wave Pairing Instructions:
1. Press Services, then press the Z-Wave logo.
2. Press the wrench icon for settings, then enter the default installer code 1561.
3. Press Add Devices, entering the system into Z-Wave learn mode.
4. Connect the Smart Plug by plugging it into a powered outlet.
5. Learning may take up to 2 minutes. Press back or home to exit.
Interlogix Simon XTi and Z-Wave Pairing Instructions:
1. Press the gear icon for settings, then press the down arrow several times to reach Programming.
2. Press Enter next to Programming. Enter your master code, then press Ok.
3. Press Interactive Services, then press Z-Wave.
4. Press Add Device to start the learning process.
5. Connect the Smart Plug by plugging it into a powered outlet.
6. The Simon XTi beeps and displays Device XX added. Press Close several times to exit.
Interlogix Simon XT and Z-Wave Pairing Instructions:
1. Hold the Star (*) key for 10 seconds to open the Z-Wave menu.
2. Hold the 1 key for 10 seconds to add.
3. The Simon XT enters Z-Wave learn mode.
4. Connect the Smart Plug by plugging it into a powered outlet.
5. When successful, the Simon XT beeps and displays the number of devices in memory.
6. Hold # for 10 seconds to exit.
